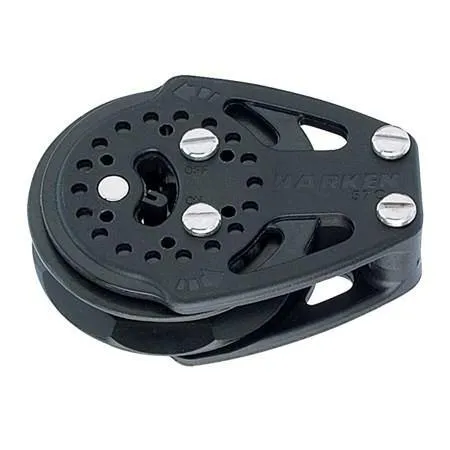

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 83 mm |
| Length (in) | 3 1/4 in |
| Weight (g) | 71 g |
| Weight (oz) | 2.5 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Fasteners (mm) | M4 mm |
| Maximum working load (kg) | 227 kg |
| Maximum working load (lb) | 500 lb |
| Breaking load (kg) | 907 kg |
| Breaking load (lb) | 2000 lb |
| Holding power | 10:1 |
| Footnote | Includes fasteners and mounting pad. |
