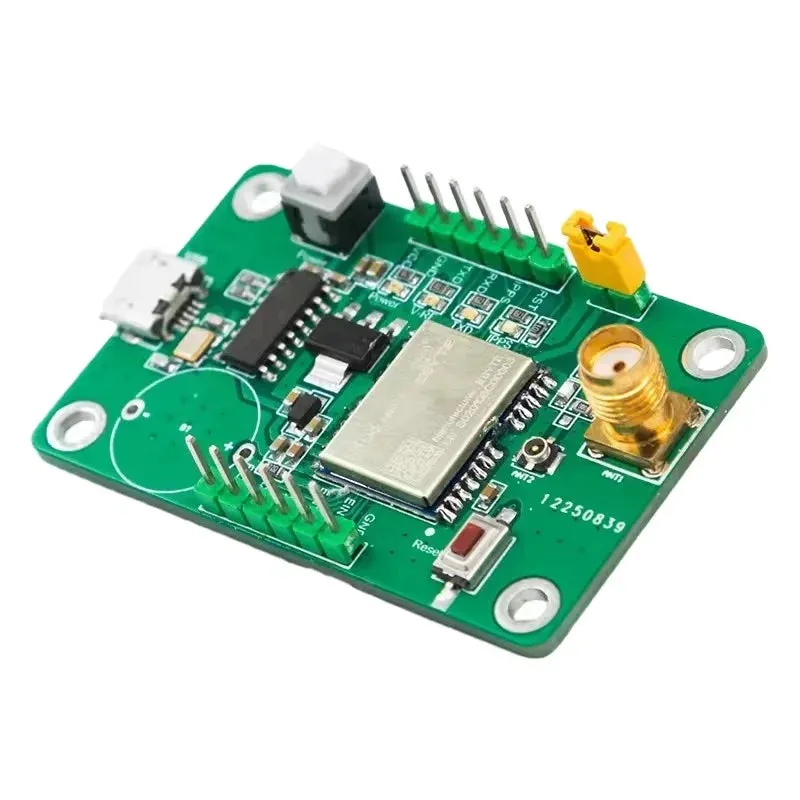

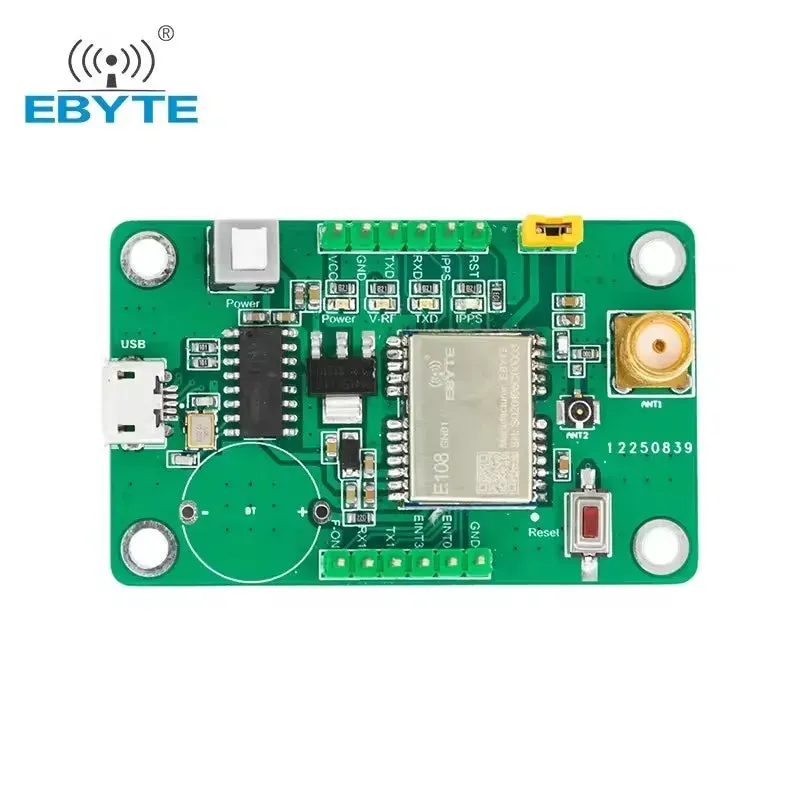

Ebyte Navigation Tracker GPS Developer Test Kit E108-GN01-TB Multi-mode GPS Module Development Board Platform USB Interface
Product Description
|
Basic parameter
|
|
|
||
|
Type
|
Details
|
|
||
|
Protocol
|
NMEA0183 V4.1 and previous version，max updating frequency is 10Hz
|
|
||
|
GPS system
|
BDS/GPS/GLONASS/GALILEO/QZSS/SBAS
|
|
||
|
Peripheral interface
|
UART（TXD/RXD） or GPIO
|
|
||
|
Low power
|
Available
|
|
||
|
Ultra-low power
|
Available
|
|
||
|
Periodical low power
|
Available
|
|
||
|
Direct low power
|
Available
|
|
||
|
Parameter setting software
|
Available
|
|
||
|
Certification
|
Pending
|
|
||
|
Size
|
53*33*13.5 mm
|
|
||
|
Package
|
Half hole（SMT）
|
|
||
|
Power supply
|
VCC
|
2.8V—4.3V（3.3V）
|
||
|
UART
|
Communication level
|
2.8V
|
||
|
|
Baud rate（bps）
|
9600（default）、115200（customizable）
|
||
|
|
Data bit
|
8bit
|
||
|
|
Stop bit
|
1
|
||
|
|
Parity
|
None
|
||
|
GPS performance
|
|
|
|
|||
|
Type
|
Indicator
|
Typ.
|
Unit
|
|||
|
|
Cold start
|
27.5
|
S
|
|||
|
|
Hot start
|
＜1
|
S
|
|||
|
|
Re-capture
|
＜1
|
S
|
|||
|
|
A-GNSS
|
＜10
|
S
|
|||
|
|
Cold start
|
-148
|
dBm
|
|||
|
|
Hot start
|
-162
|
dBm
|
|||
|
|
Re-capture
|
-164
|
dBm
|
|||
|
|
Follow
|
-166
|
dBm
|
|||
|
|
Horizontal positioning accuracy
|
2.5
|
m
|
|||
|
|
Height positioning accuracy
|
3.5
|
m
|
|||
|
|
Speed positioning accuracy
|
0.1
|
m/s
|
|||
|
|
Timing accuracy
|
30
|
ns
|
|||
|
Power consumption（test condition 4）
|
Capture current
|
30
|
mA
|
|||
|
|
Follow current
|
20
|
mA
|
|||
|
Operating temperature
|
-
|
-35℃--85℃
|
-
|
|||
|
Storage temperature
|
-
|
-55℃--100℃
|
-
|
|||
|
Humidity
|
-
|
5%-95%RH（Nocondensation）
|
-
|
|||
