RF443

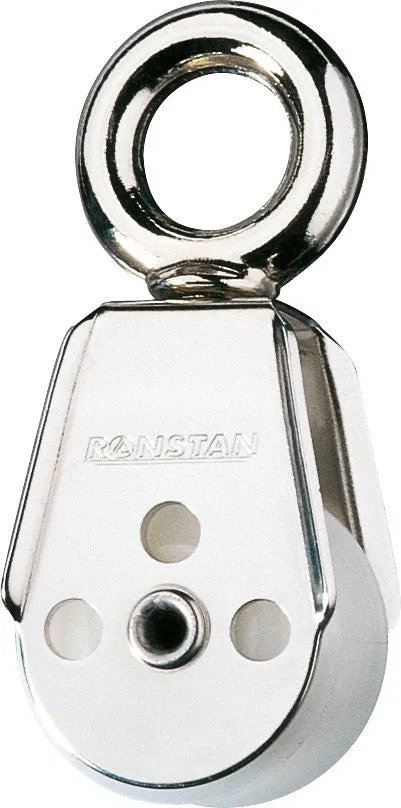

Series 30 Utility Block, Ring Top
Swivel ring head
FEATURES
- Lightweight durable construction.
- Economical.
- Maintenance free.
SPECIFICATIONS
| B.L. (kg) | 500 |
|---|---|
| M.W.L. (kg) | 250 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 44 |
| Pin Ø (mm) | 13 |
Product Information
Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.
TECHNICAL INFORMATION
SPECIFICATION DETAILS
| A (mm) | 19.6 |
|---|---|
| B (mm) | 80.0 |
| C (mm) | 4.0 |
| D (mm) | 60.0 |
APPLICATIONS
Vang, cunningham and trapeze retriever systems on dinghies. Leech line tackles, bunk adjusters etc on larger yachts
